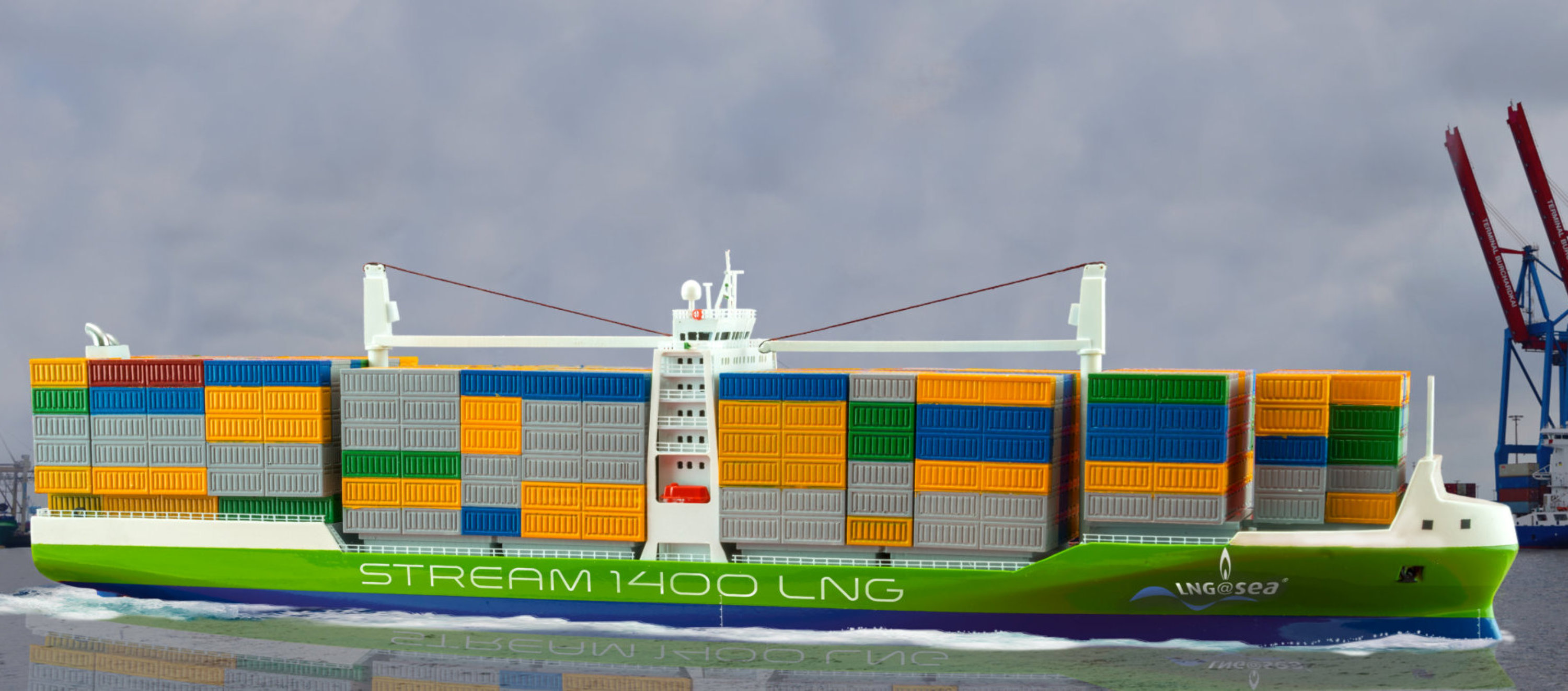

GENERAL TLS-Design No.: 10014-01 Doc1 Status 11.05.2015 MAIN DATA Length (over all) 149.90 m Length (between PP) 147.00 m Breadth (moulded) 26.40 m Depth (main deck) 11.20 m Draught (design) 8.10 m Draught (max) 9.30 m Dead weight (design) 14,900 dwt Dead weight (max) 19,200 dwt SPEED/ RANGE Operational speed 17.0 kn Top speed 18.5 kn Range (total) 15,200 nm Range (LNG powered) 3,200 nm PROPULSION PLANT Main Engine MAN 5G60ME-GI Shaft Motor 2,000 kW CARGO CAPACITIES Total container intake 1,350 TEU 40’ HC reefer 400 Units 45’ HC container 510 Units
KEY FEATURES Optimized for 45’/ wide body container Full high cube reefer capacity and high cube optimized cargo hold Fast loading and unloading in ports with cargo cranes and single flap hatch covers Excellent manoeuvrability due to bow thruster, CPP and flap rudder Extreme low consumption due to energy saver, optimized hull lines for various speeds and draughts as  well as optimized propulsion with ultra- long stroke main engine Forward looking LNG dual-fuel power design
