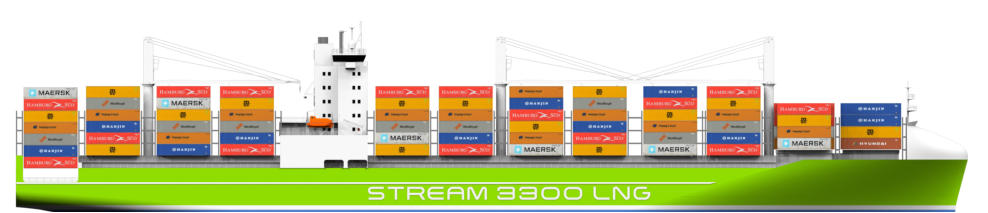

KEY FEATURES Optimized for high cube reefer stowage Full cellguided reefer storage up to 4th deck tier Efficient propulsion system: Becker Twisted Fin® and low-speed main engine LNG ready design


TECHNOLOG Services GmbH

Vorsetzen 50 20459 Hamburg Germany +49(0) 40 . 70 70 76-800 info@technolog.biz http://www.technolog.biz
GENERAL TLS-Design No.: 10033-00 Doc1 Status 11.05.2015 MAIN DATA Length (over all) 215.70 m Length (between PP) 207.95 m Breadth (moulded) 35.25 m Depth (main deck) 19.35 m Draught (design) 10.00 m Draught (max) 11.50 m Dead weight (design) 29,800 dwt Dead weight (max) 40,200 dwt SPEED/ RANGE Operational speed 18.0 kn Top speed 20,0 kn Range      25,000 nm PROPULSION PLANT Main Engine    MAN 7G70ME-C9.5 Propeller      1 x FPP CARGO CAPACITIES Total container intake 3,284 TEU 40’ HC reefer 1,140 Units 45’ HC container      57 Units

