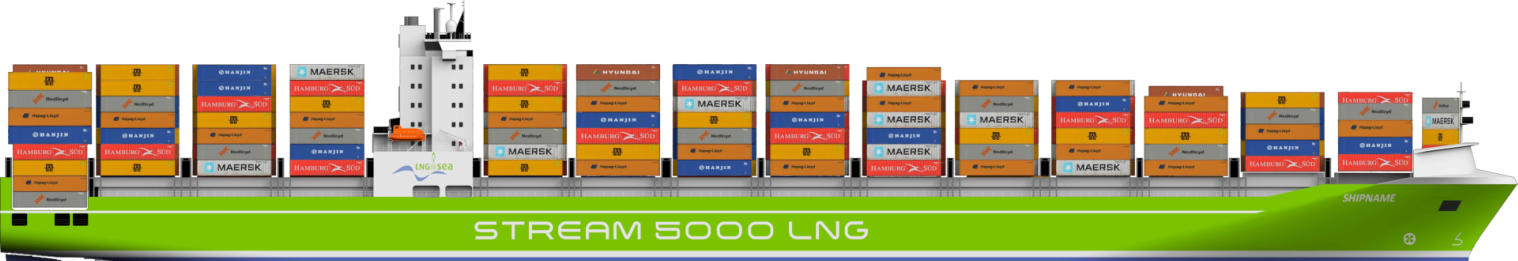

GENERAL TLS-Design No.: 10050-00 Doc1 Status 11.05.2015 MAIN DATA Length (over all) 249.60 m Length (between PP) 235.10 m Breadth (moulded) 37.60 m Draught (design) 12.50 m Draught (max) 13.50 m Dead weight (design) 51,700 t Dead weight (max) 61,200 t SPEED/ RANGE Operational speed 14-18.5 kn Catch-up speed 19.5 kn Range (total) 16,000 nm Range (LNG powered) 10,000 nm PROPULSION PLANT Main Engine MAN 6G80ME-GI Shaft Motor 3,000 kW CARGO CAPACITIES Total container intake 5,075 TEU 40’ HC reefer 1,000 Units 45’ HC container 1,090 Units  48’/ 49’ wide container 650 Units
KEY FEATURES Fast cargo handling due to open top and stack splitting design Multi-purpose container stowage (45'/ 48'/ 49'); fully high cube optimized High reefer container capacity Optimized hull for various draughts and speeds Ice class E3/ 1A Forward looking LNG dual-fuel power design Ultra low emission and consumption Most efficient: Becker TF energy saver and ultra long stroke engine Waste heat recovery system Prepared for cargo cranes

