215M HEAVY LIFT DECK CARRIER
GENERAL
TLS-DESIGN No.:
11001
MAIN DATA
Length (over all)
215.0 m
Breadth (moulded)
50.6 m
Depth (main deck)
15.5 m
Draught (design)
8.0 m
Draught (scantling)
9.5 m
Deadweight (max.)
35,000 t
Cargo deck area
9200 m²
Cargo hold
2000 m²
Power plant
14 MW
Cruising speed
15.0 kn
Endurance LNG
11,000 nm
KEY FEATURES
•

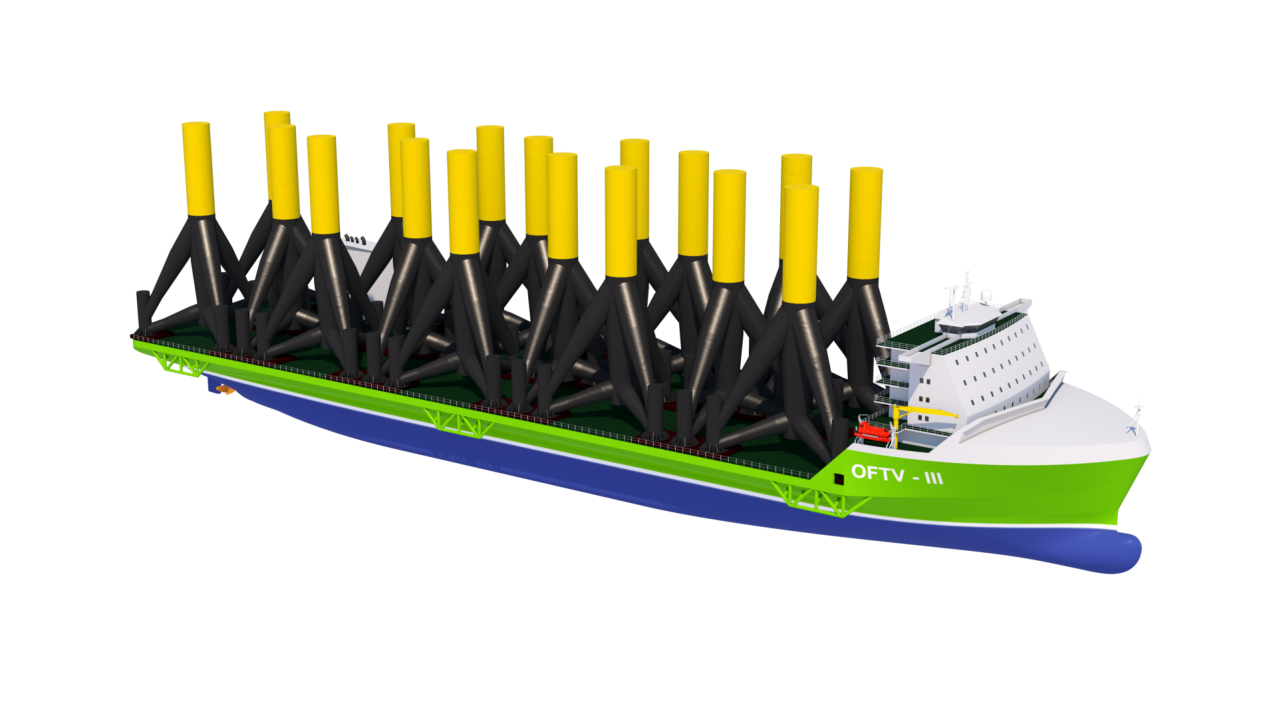

Exceptional high cargo deck area e.g. 17 windfarm foundations/ Tripods
•
High payload capacity
•
Large Stability therefore flexible loading
•
Roll on/ Roll off loading capability
•
High accommodation and cruise comfort
•
LNG as fuel
•
Alternative versions:
o
Semi-Submersible vessel
o
Heavy Lift vessel with high capacity Cargo cranes
o
Offshore Construction vessel
