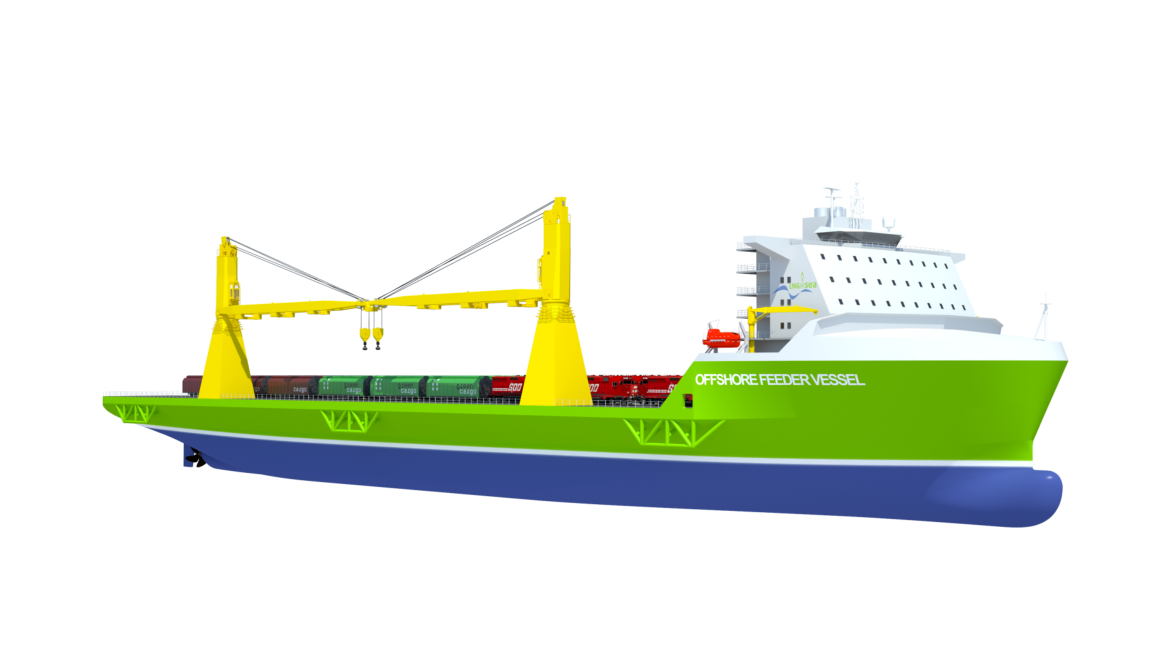

GENERAL TLS-DESIGN No.: 11002 MAIN DATA Length (over all) 190.0 m Breadth (moulded) 50.6 m Depth (main deck) 15.5 m Draught (design) 8.0 m Draught (scantling) 9.5 m Deadweight (max.) 30,000 t Cargo deck area 85 00 m² Cargo hold 2000 m² Power plant 14 MW Cruising speed 15.0 kn Endurance  LNG   11,000 nm
KEY FEATURES Exceptional high cargo deck area Highest payload capacity 2 x 1500 t cranes Large stability, flexible loading Roll on/ Roll off capability High accommodation and cruise comfort LNG as fuel
