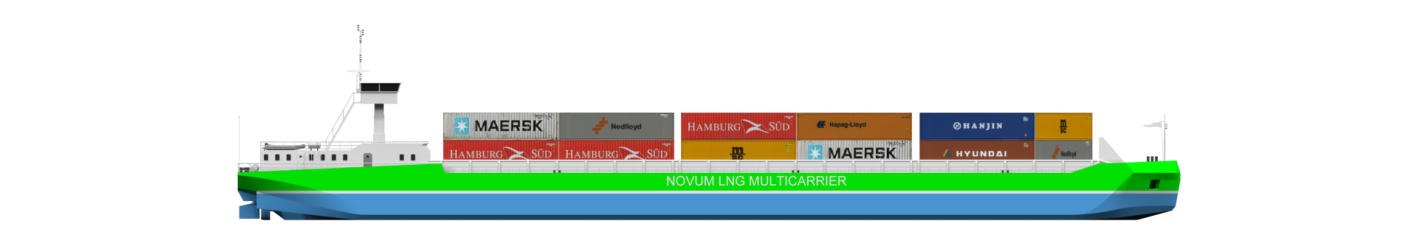

GENERAL TLS-Design No.: 16001-01 Doc1 Status 04.06.2015 MAIN DATA Length (over all) 100.00 m Length (between PP) 97.90 m Breadth (moulded) 11.45 m Depth (main deck) 5.00 m Draught (design) 2.80 m Draught (max) 3.20 m Deadweight (design) 1,880 dwt Deadweight (max) 2,230 dwt SPEED/ RANGE Top speed 10.8 kn Range (total) 4,000 nm Range (LNG powered) 1,300 nm PROPULSION PLANT Main Engine 4-stroke DF Power 1,300 kW CARGO CAPACITIES Total container intake 176 TEU Hold volume 3,950 m³
KEY FEATURES Inland water way vessel with permission for coastal navigation Full open hatch box shape cargo hold, optimized for container transportation Flexible partition bulkheads and weather protection for bulk cargo Retractable wheel house for minimum air draft Excellent manoeuvrability due to double rudder, nozzle propeller and bow pump jet. Forward looking LNG dual-fuel power design


TECHNOLOG Services GmbH

Vorsetzen 50 20459 Hamburg Germany +49(0) 40 . 70 70 76-800 info@technolog.biz http://www.technolog.biz
