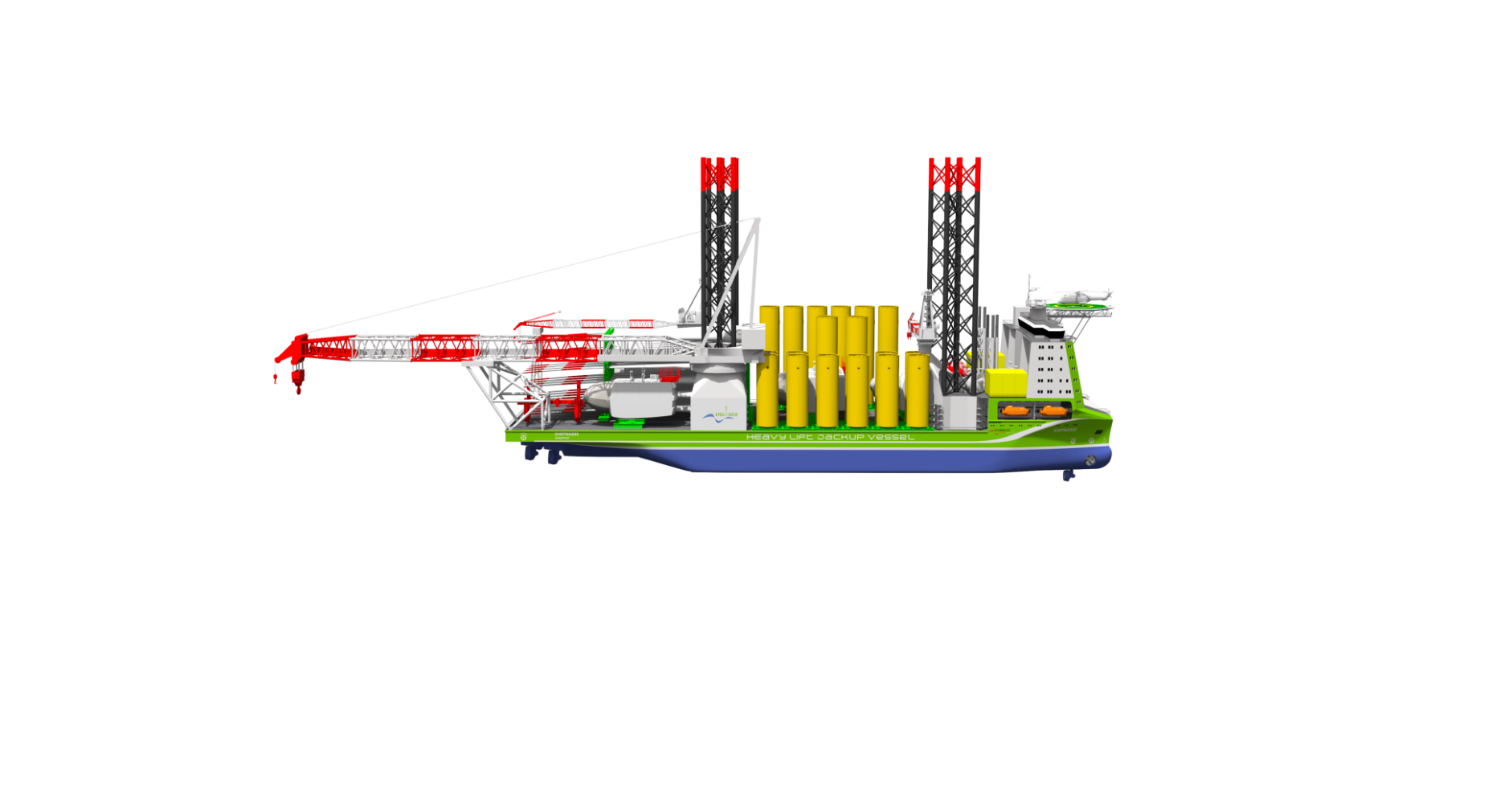

165M HEAVY LIFT JACK-UP
OFFSHORE INSTALLATION VESSEL
GENERAL
TLS-DESIGN No.:
60001
MAIN DATA
Length (hull)
165.00 m
Length (between PP)
159.00 m
Length (over all)
240.00 m
Breadth (moulded)
54.00 m
Depth (main deck)
11.60 m
Draught (design)
6.60 m
Draught (scantling)
7.00 m
Dead weight (max.)
12000 t
Payload (max.)
9000 t
Cargo deck area
7000 m²
Power plant
25.6 MW
Cruising speed
12.0 kn
Endurance
45 days / 10000 nm
Dynamic positioning system
DP 2
Water depth, max.
65 m
KEY FEATURES
•
Exceptional high cargo deck area, therefore minimized transit cycles
•
Highest payload capacity with actual and future cargo (WTG, XL-
Monopiles)
•
High accommodation and cruise comfort
•
High operational safety due to redundant power plant and propulsion
•
LNG as fuel optional
•
Robust jacking system with hydraulic pin-in-hole system
PAYLOAD PERFORMANCE EXAMPLES
8 x Windturbines 6MW, incl. nacelles, blades/ hubs, towers
7000 t
4 x Jacket foundations 40m water depth for 5MW WTG
7200 t
3 x Jacket foundations 60m water depth for 8MW WTG
8600 t
6 x Monopile foundations 40m water depth for 8MW WTG
8800 t
