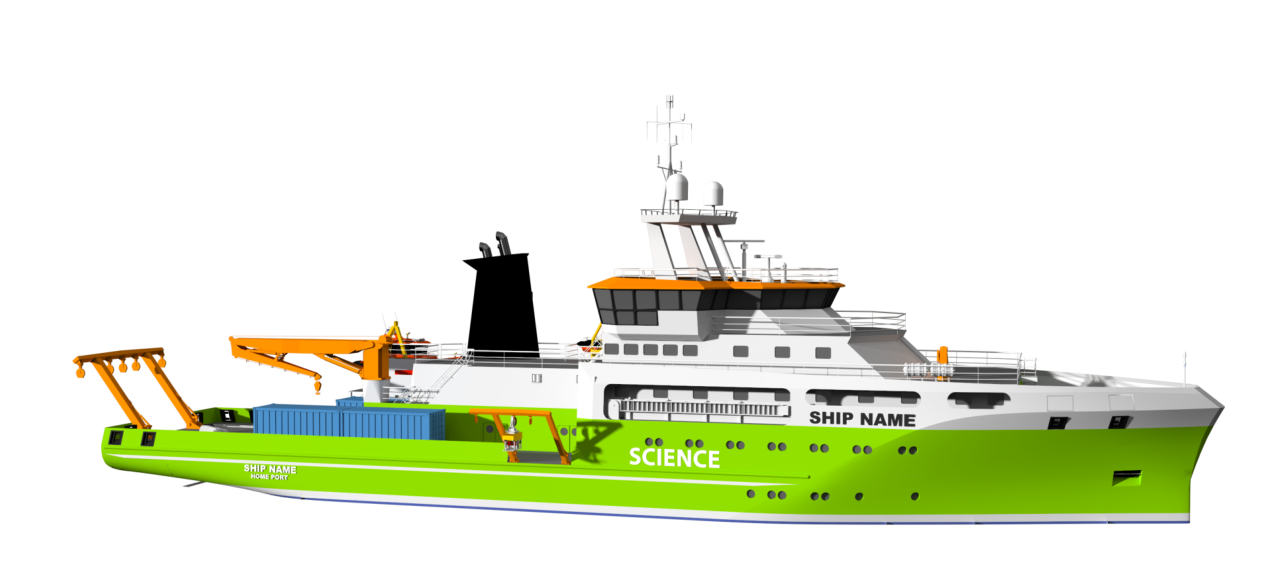

GENERAL TLS-Design No.: 63021 Doc1 Status 01.11.2016 MAIN DATA Length (over all) 69.00 m Length (between PP) 65.00 m Breadth (moulded) 14.00 m Depth (main deck) 6.50 m Draught (design) 3.50 m Complement 45 Persons SPEED/ RANGE Max. speed 14.0 kn Design speed 11.0 kn Range 8000 nm DECK CAPACITIES Working deck area 325 m² Other science deck area 350 m² Total science container 5 TEU
MAIN OPERATIONAL TASKS Multidisciplinary vessel: geophysics and biology physical and chemical oceanography, geology, , atmospheric physic and chemistry Seafloor mapping, wreak search, fishery control, law enforcement KEY FEATURES Modular design for propulsion, machinery system and science outfit Very cost effective in construction and operation Robust and flexible platform Optimised for small crew and 24/ 7 operation Lowest underwater noise acc. DNV SILENT A or better 1 x 8m survey boat with acoustic research equipment


TECHNOLOG Services GmbH

Vorsetzen 50 20459 Hamburg Germany +49(0) 40 . 70 70 76-800 info@technolog.biz http://www.technolog.biz

