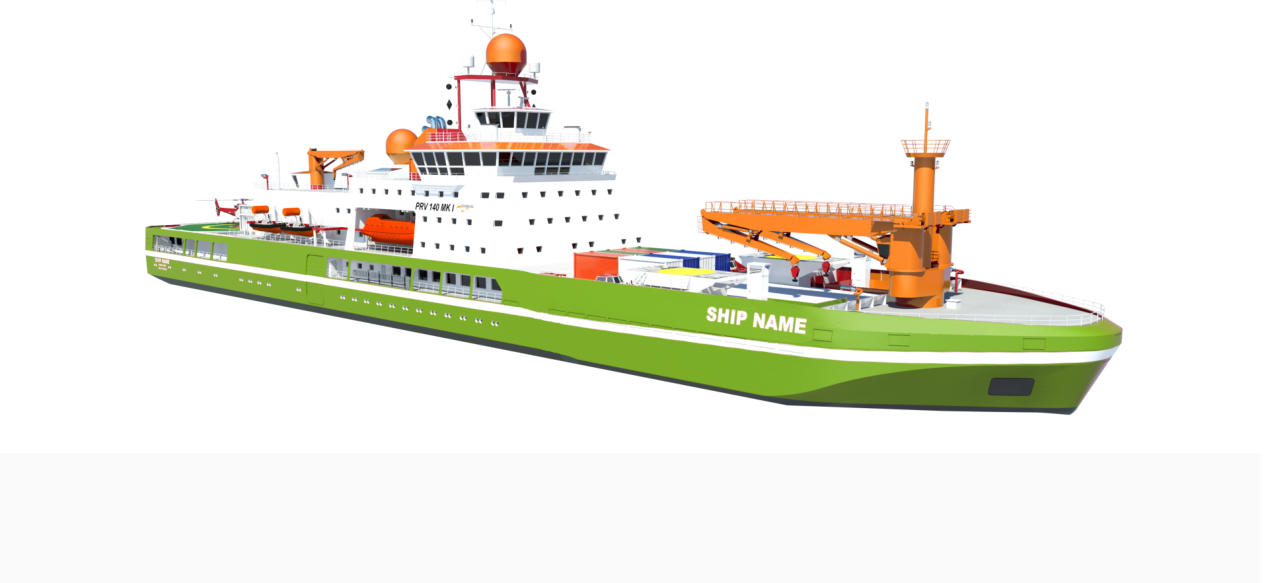

GENERAL TLS-DESIGN No.: 64024 MAIN DATA Length (over all) 125.0 m Breadth (moulded) 23.5 m Depth (main deck) 11.0 m Draught 9.4 m Deadweight (design) up to 6800 t Complement 105 Persons Ice class up to PC 2 SPEED/ RANGE Transit speed up to 13.0 kn Ice breaking 1.8m ice at 3kn Endurance    16,000 nm DECK CAPACITIES Working deck area 900 m² Laboratory area 700 m²
KEY FEATURES Exceptional logistic performance, therefore maximised science operation days or lowest fuel consumption due to red. transit speed i.e. max. flexibility for customer in regards of operational time and cost Largest logistic capacity in the market to handle effectively multiple polar stations in one voyage Large operational window due even in harsh weather and lowest temp. High polar science operability due to fully integrated missionbay and moonpool and optimal lab. arrangement Unique combination and provision of scientific features in this class: o Large Corers o 2D/ 3D Seismic  Survey in ice/ open water o Large AUV, ROV, UAV, USV, Drill machines o Pelagic and demersal trawl
