Secure energy supply - anywhere

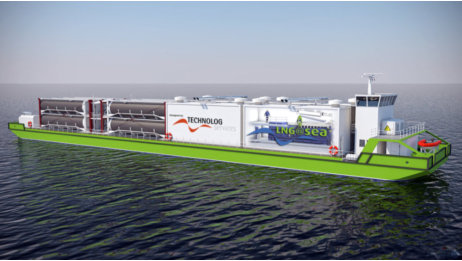

NATURAL GAS POWERED GREEN
FLOATING POWER PLANT
Continual reinvestment in research and development
has enabled us to be at the cutting edge of innovation
and design. In the field we supply “green products” such
as low emission catalytic converters and diesel particle
filters for machinery in confined spaces ensuring health
and safety requirements are constantly met.
Our retrofitted emission systems are ideal for working in areas with limited ventilation including basements where poisonous
exhaust gases can harm the operator’s health.
ENVIRONMENTALLY FRIENDLY
Supplying ships in a harbour with external energy in order to
prevent the formation of soot and CO2
ULTRAFLEXIBLE
Power, just where it is needed
COST EFFICIENT SOLUTION
Natural gas powered floating plant

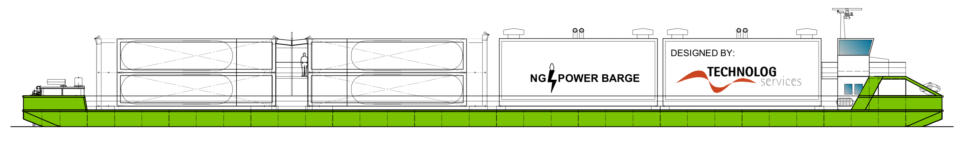

6 MW GREEN ELECTRIC POWER FOR SHIPS AND SHORE
GENERAL
TLS-Design No.:
65020-01
Doc1 Status
11.06.2015
MAIN DATA
Length (over all)
70.90 m
Length (between PP)
69.10 m
Breadth (moulded)
12.30 m
Breadth (max)
12.50 m
Depth (main deck)
2.50 m
Draught (design)
1.15 m
SPEED
Transfer speed
12.5 km/h
POWER PLANT
Generators
4 x 1,840 kW
Motor
4 x RR C26:33L8A
PROPULSION
Plant
2 x Schottel Navigator
KEY FEATURES
•
Fully natural gas powered green floatin power plant
•
6 MW electric supply power
•
Gas supply by up to 8 x 40ft bunker container (LNG or CNG)
•
Loading of gas container but no gas bunkering to minimize risks
•
Propulsion by modular, fuel oil powered rudder propeller units
•
Quick release for electric and mooring connections
•
Modular construction concept
•
Electric control unit
•
Accommodation unit for 2 crew
